Defeating CRITICAL_PROCESS_DIED: The WinRE Update Scrub

WinRE Offline Update Cache Scrub & Critical Process Died Repair Guide

5 min. read

The Ticket: The Update Death Loop

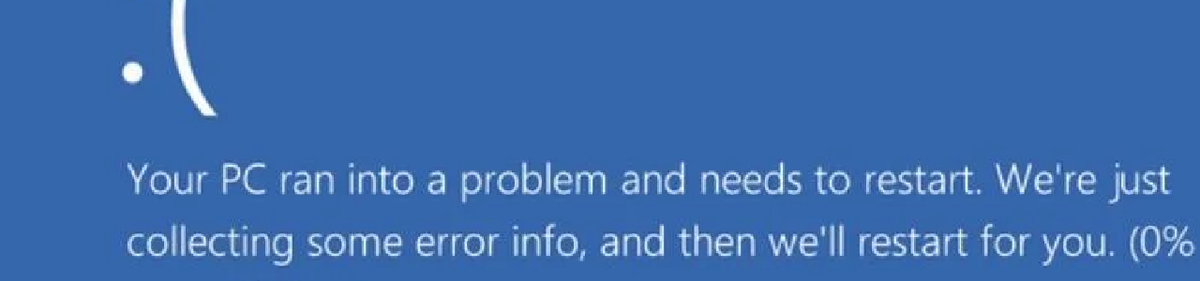

A client's primary workstation applied a cumulative Windows update overnight. Now, the machine refuses to reach the login screen. It boots, hits a blue screen with CRITICAL_PROCESS_DIED, and instantly reboots. Your Tier 1 techs are trying to pull a minidump file to analyze the crash, but there is absolutely nothing in the directory. The crash was so severe that the operating system could not even pause to write the diagnostic logs. Since normal Windows is completely dead, we have to drop into the Windows Recovery Environment (WinRE) to manually scrub the corrupted update cache and run offline repairs.

Pre-Flight Check

• Permissions: Physical access to the machine (or out-of-band management) to navigate the WinRE menus.
• Tools: A bootable Windows USB drive (if the internal WinRE partition is also corrupted).
• Impact: High. Deleting the update cache folders will erase the local Windows Update history, but it will not touch user data or installed applications.

[!WARNING] The Risk Factor: You are working outside the active operating system. If the drive is encrypted, you must manually unlock it using the manage-bde command and the 48-digit BitLocker Recovery Key before you can access the file system. Do not proceed until you have the key.

The Solution: The Offline Scrub Script

A quick note on older troubleshooting guides: You will often see recommendations to run sigverif to check for unsigned drivers. However, sigverif is a GUI-based tool that will immediately fail to launch inside the WinRE command prompt. We must use native offline CLI commands instead.

Instead of typing these out manually every time, Tier 2 techs should keep this batch script on a diagnostic USB drive. Plug the drive in, open the WinRE Command Prompt, locate the USB drive letter, and execute the file.

DOS

:: *** 404 & More: WinRE Offline Scrub ***
@echo off
echo Initiating Offline Windows Update Scrub...

:: 1. Identify the correct OS volume (WinRE often shifts C: to D: or E:)
:: You must verify your drive letter before running this block!
set OSDrive=D:

echo Target OS Drive set to %OSDrive%

:: 2. Rename the SoftwareDistribution folder
echo Flushing SoftwareDistribution...
if exist "%OSDrive%\Windows\SoftwareDistribution" (
    ren "%OSDrive%\Windows\SoftwareDistribution" SoftwareDistribution.bak
    echo SoftwareDistribution renamed.
) else (
    echo Folder not found, skipping.
)

:: 3. Rename the catroot2 folder
echo Flushing catroot2...
if exist "%OSDrive%\Windows\System32\catroot2" (
    ren "%OSDrive%\Windows\System32\catroot2" catroot2.bak
    echo catroot2 renamed.
) else (
    echo Folder not found, skipping.
)

:: 4. Run an Offline SFC Scan
echo Running Offline System File Checker...
sfc /scannow /offbootdir=%OSDrive%\ /offwindir=%OSDrive%\Windows

:: 5. Run an Offline DISM Revert
echo Reverting pending update actions...
dism /image:%OSDrive%\ /cleanup-image /revertpendingactions

echo SUCCESS: Update cache cleared and pending actions reverted.
echo Please remove the USB and restart the PC.
pause

The "Why" (Root Cause)

Why does a failed update cause such a catastrophic error? Windows relies on several hyper-critical background processes to function. These include csrss.exe (Client/Server Run-Time Subsystem), wininit.exe (Windows Start-Up Application), and lsass.exe (Local Security Authority Process).

If a botched Windows update overwrites a core system DLL but fails to register its digital signature, or if the update engine hangs while modifying a registry hive, these core processes cannot load. Windows 11 has a zero-tolerance policy for these specific executables. If csrss.exe terminates unexpectedly, the kernel assumes the system has been compromised by a severe hardware fault or a rootkit and instantly triggers Bug Check 0xEF to shut the motherboard down.

Under the Hood (Technical Deep Dive)

Why is there no dump file? When a standard driver crashes, the kernel intercepts the error, pauses the system, writes the contents of the RAM to pagefile.sys, and then reboots.

However, if the process that died was the exact subsystem responsible for managing disk I/O, or if the crash occurred so early in the boot sequence that the paging file had not been initialized yet, the kernel physically cannot write the data to the SSD.

By renaming the SoftwareDistribution and catroot2 folders, we are effectively blinding the Windows Update engine. catroot2 holds the cryptographic signatures of Windows update packages. When we rename it, Windows is forced to create a fresh folder on the next boot and rebuild the catalog, abandoning the corrupted, half-installed patch that was killing the core processes.

RMM & Automation Tips

• Custom WinPE Images: You obviously cannot run an RMM script on a dead machine. This is a perfect homelab project for your junior techs. Have them build a custom WinPE (Windows Preinstallation Environment) ISO that automatically maps network drives to your MSP software repository and includes scripts like the one above. Burn it to Rufus USBs for all your field techs.
• Update Deferrals: The best way to fix this BSOD is to prevent it entirely. Ensure your RMM patch management policy defers feature updates and major cumulative patches for at least 14 days. Let the general public beta-test Microsoft's patches before you deploy them to your clients.

Troubleshooting & Edge Cases

• Edge Case 1: The Failing NVMe. If you run the offline scrub, the system boots fine, but the exact same CRITICAL_PROCESS_DIED error returns three days later, stop looking at software. Your NVMe SSD is randomly dropping off the PCIe bus. When the drive disconnects for even a microsecond, the core Windows processes lose access to the disk and terminate. Check the SMART data and replace the drive.
• Edge Case 2: DISM Image Cleanup Fails. If the /revertpendingactions command throws an error stating it cannot access the image, the Pending.xml file is completely locked. You will need to navigate to %OSDrive%\Windows\WinSxS and manually delete the pending.xml file before DISM will function.
