Fixing DPC Watchdog Violation: The SSD Firmware Upgrade Guide

5 min. read

The Ticket: The Silent Storage Freeze

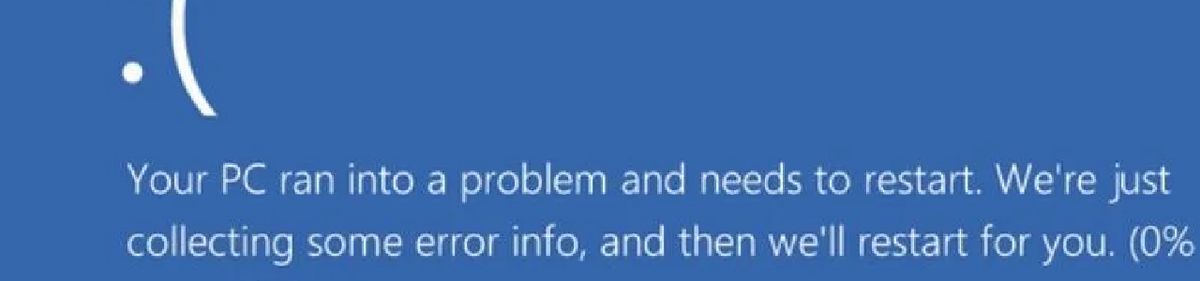

A remote accountant reports their workstation randomly freezes. The mouse cursor stops moving, keyboard inputs do nothing, and after about ten agonizing seconds of silence, the system throws a DPC_WATCHDOG_VIOLATION blue screen. This happens intermittently during heavy database exports or large file transfers. Reinstalling Windows did not fix it, and memory diagnostics passed perfectly. We need to look deeper than the operating system and address the microcode on the storage hardware itself.

Pre-Flight Check

• Permissions: Local Administrator.
• Tools: Device Manager, Manufacturer SSD Dashboard (Samsung Magician, WD Dashboard, Crucial Storage Executive).
• Impact: High. Firmware updates interact directly with the storage controller. An unexpected power loss during the flash process will permanently brick the SSD. Ensure data is backed up and UPS power is active.

The Solution: Flashing the Storage Controller

Most users assume Windows Update handles all hardware patches. It does not. You must manually force the SSD firmware upgrade.

1. Identify the Hardware: Right-click the Start button and open Device Manager. Expand Disk drives and note the exact model of the primary SSD.
2. Download the Dashboard: Navigate to the manufacturer's official support site. Download their proprietary storage management software.
3. Back Up Data: Run a fresh image-level backup or sync critical files to the cloud. Do not skip this step.
4. Apply the Firmware: Open the dashboard tool. Navigate to the Firmware Update section. If an update is available, click Update.
5. Restart: The PC will typically require a full reboot. Some dashboard utilities will reboot into a temporary pre-OS Linux environment to safely flash the drive without Windows locking the volume. Allow the process to complete without touching the power button.

The "Why" (Root Cause)

Most end users do not realize their solid-state drives possess their own internal operating system called firmware. This software dictates how the drive controller handles garbage collection, wear leveling, and communication with the motherboard.

When Windows pushes a major feature update, it often updates the native storage drivers, such as stornvme.sys for NVMe drives or storahci.sys for SATA drives. If the SSD firmware is too old to understand the updated communication protocols, the drive fails to respond to a system request in time. Windows waits, the system hangs, and eventually, the OS panics and crashes to protect the NTFS file system from corruption.

Under the Hood (Technical Deep Dive)

Let us break down the error code itself. DPC stands for Deferred Procedure Call. The Windows kernel uses DPCs to prioritize hardware interrupts. When a hardware component needs the CPU's attention, it sends an interrupt. The CPU handles the immediate need, then schedules a DPC to process the remaining data when it has free cycles.

Microsoft implements a "Watchdog" timer to ensure no single driver hogs the CPU for too long. By default, a DPC is only allowed to execute for 100 microseconds. If the SSD controller locks up and holds the DPC in a pending state longer than the watchdog threshold, the kernel assumes the storage subsystem is deadlocked. It triggers Bug Check 0x133 (DPC_WATCHDOG_VIOLATION) to halt the system immediately. Flashing the SSD firmware fixes the deep-level latency bugs causing these massive microcode delays.

RMM & Automation Tips

• Automated Hardware Audits: Firmware is notoriously difficult to update silently via RMM because it often requires bypassing OS file locks or displaying end-user prompts. However, you can automate the audit process. Run a PowerShell script across your endpoints to query physical disk data: Get-PhysicalDisk | Select-Object FriendlyName, FirmwareVersion Output this data to your PSA to build a hardware compliance report. This allows you to proactively target machines running known buggy firmware versions, such as the infamous Samsung 980 PRO read-only bug.

Troubleshooting & Edge Cases

• Edge Case 1: Incompatible Dashboards (OEM Drives). Sometimes an SSD is an OEM part, like a Samsung PM981 built specifically for a Dell laptop. The retail Samsung Magician software will refuse to recognize or update it. You must download the specific firmware executable directly from the Dell or Lenovo support page using the machine's Service Tag.
• Edge Case 2: The Native SATA Driver Clash. If updating the firmware does not cure the issue on an older SATA SSD, the proprietary driver (like Intel Rapid Storage Technology) might be conflicting with the drive. Open Device Manager, go to IDE ATA/ATAPI controllers, manually update the driver, and force it to use the generic Microsoft Standard SATA AHCI Controller.
