Fixing INACCESSIBLE_BOOT_DEVICE: The BIOS Storage Controller Mismatch

4 min. read

The Ticket: The Post-Update Kernel Panic

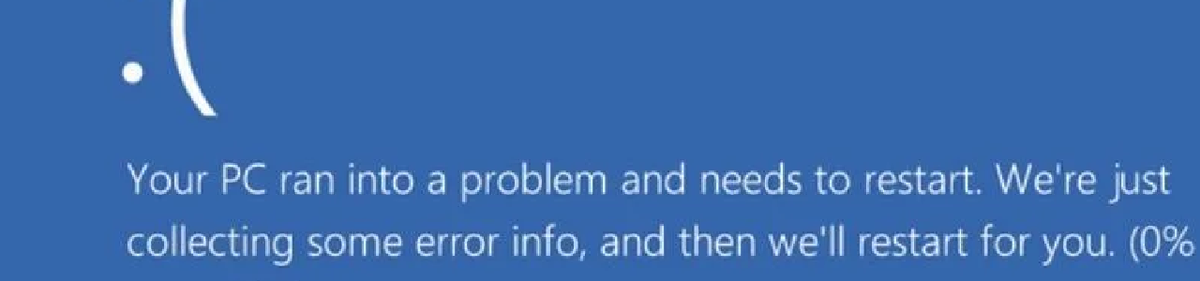

A field tech just completed a motherboard replacement under warranty, or a remote user's laptop applied a critical manufacturer firmware update overnight. Now, the machine is stuck in a terrifying Blue Screen of Death loop displaying INACCESSIBLE_BOOT_DEVICE. The drive seems completely dead, and the client is panicking about lost data. The hardware is fine, and the data is intact. The operating system simply forgot how to talk to the SSD because a low-level hardware translation layer was flipped.

Pre-Flight Check

• Permissions: Physical access to the machine to manipulate the UEFI/BIOS.
• Tools: BIOS entry keys (F2, F12, Del, Esc).
• Impact: High. Changing BIOS storage settings on a healthy OS will deliberately cause this exact BSOD. Changing it back on a broken OS will fix it instantly.

[!WARNING] The Risk Factor: Changing storage controller protocols alters the hardware profile measured by the TPM (Trusted Platform Module). When the machine successfully boots, it will almost certainly trip BitLocker. Do not proceed unless you have the 48-digit BitLocker Recovery Key accessible in your Active Directory or IT documentation portal.

The Solution: The 30-Second Firmware Toggle

Do not attempt to run the Windows Startup Repair tool. It will fail to fix this specific issue and waste 40 minutes of your time.

1. Power on the machine and rapidly tap the BIOS entry key (usually F2, Delete, F10, or Enter depending on the manufacturer).
2. Navigate to the Storage, Advanced, or System Configuration tab.
3. Look for a setting named SATA Operation, NVMe Mode, Configure Storage as, or Intel VMD Controller.
4. Note the current state.
   • If it is set to RAID On or Intel RST, flip it to AHCI (or NVMe Non-RAID).
   • If it is set to AHCI, flip it to RAID/VMD.
5. Acknowledge any BIOS warnings about data loss. You are not formatting the drive; you are just changing the controller protocol.
6. Save changes and exit (usually F10). The machine will reboot and load into Windows normally.

The "Why" (Root Cause)

When Windows is initially installed, it binds itself to the storage controller protocol presented by the motherboard. If a Dell XPS was built at the factory with the drive operating in "RAID" mode (Intel Rapid Storage Technology), Windows permanently maps its boot sequence to use that specific Intel driver.

If a BIOS reset, an overzealous firmware update, or a dead CMOS battery reverts that custom setting back to a standard "AHCI" default, the hardware signature instantly changes. Windows boots up, tries to load the Intel RST driver to read the C: drive, fails to understand the new standard AHCI hardware language, and halts the entire system to prevent data corruption. Flipping the toggle puts the hardware back into the language Windows expects.

Under the Hood (Technical Deep Dive)

This BSOD is officially known as Bug Check 0x7B. The Windows boot process happens in distinct phases. The Windows Boot Manager (bootmgr) uses basic UEFI firmware calls to read the disk and load the NT Kernel (ntoskrnl.exe) into memory. This is why you see the Windows logo spinning; the drive is technically readable at this stage.

The crash happens when the kernel takes over and attempts to mount the system volume using its own dedicated Windows drivers. If the motherboard is set to Intel VMD/RAID, the hardware presents a completely different PCI Vendor and Device ID than it does in AHCI mode. The kernel looks at its registry, sees it is supposed to use iaStorVD.sys (Intel VMD), but the hardware is presenting as standard NVMe demanding stornvme.sys. Because the kernel cannot load the correct driver to mount the boot volume, it throws the 0x7B error and crashes.

RMM & Automation Tips

You cannot deploy an RMM script to a machine that will not boot. However, if you are planning to change a fleet of machines from RAID to AHCI intentionally (perhaps to deploy a specific third-party encryption tool that doesn't support Intel VMD), you can automate the transition prep.

Run a script to execute bcdedit /set {current} safeboot minimal and schedule a restart. This forces Windows into Safe Mode. Safe Mode natively bypasses the strict storage driver check and automatically loads the correct AHCI driver to match the new BIOS state. Once the machine boots successfully in Safe Mode, you remove the safeboot flag (bcdedit /deletevalue {current} safeboot) and reboot normally.

Troubleshooting & Edge Cases

• Edge Case 1: The "No Bootable Device" Error. If you see "No Bootable Device Found" instead of a Blue Screen, this is not a storage controller mismatch. This means the UEFI boot path has been wiped or the drive is physically disconnected. Check your BIOS boot sequence and ensure "Windows Boot Manager" is at the top of the list.
• Edge Case 2: The Drive is Actually Dead. If you toggle the AHCI/RAID setting both ways and the INACCESSIBLE_BOOT_DEVICE error persists, or the BIOS diagnostics report "No NVMe Device Found," the SSD controller has likely suffered a catastrophic physical hardware failure.
