Decoding DRIVER_POWER_STATE_FAILURE: Fixing USB-C Dock Sleep Crashes

OEM Utility Dock Firmware Flash & Driver Power State Failure Powercfg Fix Guide

6 min. read

The Ticket: The Morning After Crash

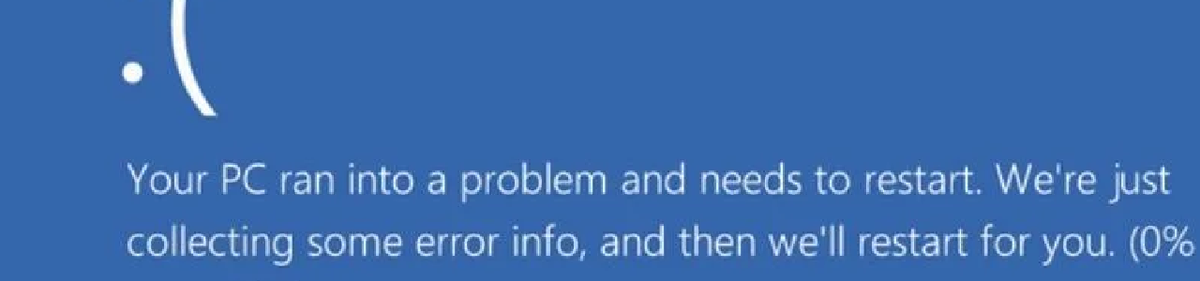

A senior executive closes their laptop at the end of the day while it is still plugged into a Thunderbolt docking station. The next morning, they open the lid, and instead of the login screen, they are greeted by a cold reboot and a "Your PC ran into a problem" message. You check the Event Viewer and find a DRIVER_POWER_STATE_FAILURE bug check logged at 3:00 AM. The helpdesk has already swapped the USB-C cable and reinstalled the graphics drivers, but the laptop keeps crashing overnight. We need to stop the operating system from improperly suspending the PCIe bus and update the dock's microcode to handle modern sleep states.

Pre-Flight Check

• Permissions: Local Administrator.
• Tools: OEM Update Utility (Dell Command, Lenovo Vantage, HP Image Assistant), Windows Control Panel.
• Impact: Moderate. Dock firmware updates will temporarily disconnect the network, external monitors, and USB peripherals.

[!WARNING] The Risk Factor: Do not unplug the USB-C cable or remove power from the docking station while the firmware flash is actively running. Interrupting a dock firmware update will permanently brick the hardware.

The Solution: Firmware and Power Plan Triage

Do not rely on standard Windows Update to fix this. You must manually intervene at both the hardware and OS levels.

1. Flash the Dock Firmware

• Disconnect all unneeded peripherals from the dock, leaving only the power cable and the USB-C connection to the laptop.
• Open the manufacturer's specific update utility (e.g., Dell Command Update).
• Run a scan and select the firmware package specific to the dock model (like the WD19TB or ThinkPad Universal Dock).
• Execute the update and allow the dock to reboot itself.

2. Disable PCIe Link State Power Management If the firmware is up to date and the crash persists, you must stop Windows from cutting power to the data lanes.

• Press the Windows Key, type control panel, and press Enter.
• Navigate to Power Options and click Change plan settings next to the active power plan.
• Click Change advanced power settings.
• Expand the PCI Express tree, then expand Link State Power Management.
• Change the setting to Off for both On battery and Plugged in.

3. Disable USB Selective Suspend

• In the same Advanced Power Settings window, expand USB settings.
• Expand USB selective suspend setting.
• Change the setting to Disabled for both power states. Click OK and restart the laptop.

The "Why" (Root Cause)

Modern Windows laptops utilize "Modern Standby" to act more like smartphones, constantly transitioning hardware in and out of ultra-low power states to save battery.

USB-C and Thunderbolt docking stations are not simple hubs; they are massive, complex PCIe bridges housing their own network cards, audio chips, and display controllers. When the laptop goes to sleep, Windows tells the dock driver to enter a sleep state (known as D3). When the user opens the laptop, Windows sends a wake signal asking the hardware to return to an active state (D0).

If the dock firmware is outdated, or if the PCIe bus aggressively cuts the voltage too fast, the dock fails to respond to the wake signal within the strict timeout window. Windows assumes the hardware driver is hopelessly deadlocked. To prevent memory corruption, the kernel intentionally triggers Bug Check 0x9F (DRIVER_POWER_STATE_FAILURE) and halts the system.

Under the Hood (Technical Deep Dive)

Bug Check 0x9F specifically means a driver is in an inconsistent or invalid power state. The Windows kernel uses I/O Request Packets (IRPs) to command hardware.

When you analyze a dump file for this crash using WinDbg, you will usually see the failure blamed on pci.sys, usbhub3.sys, or ACPI.sys. These are just the messengers. The actual culprit is the bridge controller inside the dock holding the power IRP hostage. The OS sent the power IRP to the network or display controller inside the dock, started a watchdog timer, and waited. The dock's microcode hung during the transition from D3Hot back to D0, the timer expired, and the kernel dropped the hammer.

By disabling Link State Power Management, we force the motherboard to keep the PCIe communication lanes fully energized at all times, bypassing the flawed D3-to-D0 handshake entirely.

RMM & Automation Tips

• Automate OEM Updates: Use your RMM to execute CLI commands for OEM updaters. For Dell environments, you can push a script running dcu-cli.exe /applyUpdates to silently patch dock firmware across the entire fleet without user interaction.
• Power Plan Scripting: You can globally disable PCIe Link State Power Management via PowerShell to preemptively stop these crashes. Deploy this command via RMM: powercfg -setacvalueindex SCHEME_CURRENT 501a4d13-42af-4429-9fd1-a8218c268e20 ee12f906-d277-404b-b6da-e5fa1a558def 0 Followed by powercfg -setactive SCHEME_CURRENT to apply the change immediately.

Troubleshooting & Edge Cases

• Edge Case 1: The Rogue Audio Driver. Sometimes the dock's built-in USB Audio driver (usually a Realtek chip) is the single component refusing to sleep. If firmware updates do not fix the BSOD, open Device Manager, find the dock's specific audio endpoint under "Sound, video and game controllers", and disable it. Users can still use the audio jack on the laptop itself.
• Edge Case 2: Thunderbolt BIOS Security. Older laptops feature strict Thunderbolt security settings in the BIOS. If physical security allows it, reboot into the BIOS and change the Thunderbolt authorization from "User Authorization" to "No Security". This stops the OS from aggressively re-authenticating the dock upon wake, which often bypasses the handshake hang.
